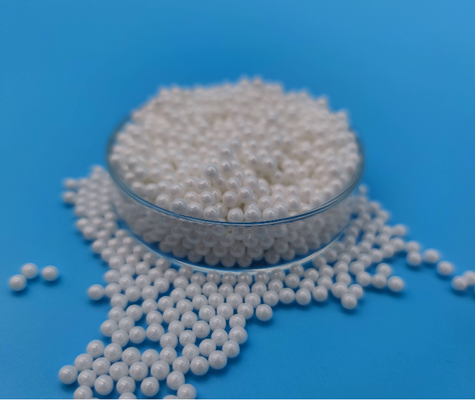

95% zirconium silicate beads widely used in the grinding and dispersion of electronic ceramic materials
| Place of Origin | Changsha China |
|---|---|
| Brand Name | Fine-Tech |
| Certification | ISO9001 |
| Model Number | 0.8-20mm |
| Minimum Order Quantity | 500kg |
| Price | Negotiation |
| Packaging Details | 25kg/barral, 25kg/bag, 1t/pallet |
| Delivery Time | 5-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 2000t per year |
Product Details
| Usage | Grinding | Color | White |
|---|---|---|---|
| Process | Bead Blasting | Size | 0.8-20mm |
| Material | 95% ZrO₂ | ||
| Highlight | zirconium silicate ceramic beads,ceramic bead blasting media,electronic ceramic grinding beads |
||
Product Description
Product Description:
95% zirconium silicate beads are widely used in the grinding and dispersion of electronic ceramic materials, including alumina (Al₂O₃), barium titanate (BaTiO₃), zirconia (ZrO₂), aluminum nitride (AlN), silicon nitride (Si₃N₄), titanium dioxide (TiO₂), and PZT (lead zirconate titanate). These materials serve as the foundation for multilayer ceramic capacitors (MLCC), piezoelectric components, substrates, sensors, and semiconductor packaging.
Features
-
Ultra-fine grinding capability: Electronic ceramics typically require sub-micron particle sizes (D50: 0.3–1.0 μm) to achieve high sintering density and uniform microstructure. The high density (~6.0 g/cm³) and hardness (Mohs ≥ 9, Vickers ~1200) of 95% zirconium silicate beads provide the impact and shear energy necessary to reach these fine particle sizes efficiently.
-
Critical purity control: Electronic ceramic materials are extremely sensitive to impurities. Even trace amounts of Fe, Si, or other metal ions can cause dielectric loss, leakage current, or performance degradation in the final ceramic component. The chemical inertness of 95% ZrO₂ beads ensures minimal dissolution and cross-contamination, maintaining the high purity required for electronic-grade powders.
-
Wear resistance at ppm level: The extremely low wear rate ensures that bead debris does not introduce foreign particles into the slurry. This is particularly important for MLCC production, where any contamination can lead to delamination, cracking, or electrical failure in the multilayer structure.
-
Narrow particle size distribution: High sphericity and smooth surface produce a concentrated, uniform particle size distribution in the ground powder. This directly improves:
- Sintering behavior: Uniform particles sinter more consistently, reducing defects
- Green density: Higher and more uniform green density before firing
- Dielectric properties: More uniform grain structure leads to stable dielectric constant and lower loss
-
Chemical compatibility: Resistant to the solvents, dispersants, and binders used in ceramic slurry preparation (e.g., water-based, alcohol-based, and solvent-based systems), preventing any adverse reaction with active ceramic powders.
Technical Parameters:
| Property | Value |
| Ture density | 6.05/dm3 |
| Bulk density | 3.75/dm3 |
| Abrasion Resistance | 0.01kg/h |
| Hardness | 9 Mohs |
| Color | white |
| Sizes | 0.8-20mm |
| Shape | Ball |
| Material | Zirconium Silicate |
Applications:
- Electronic ceramics: grinding and polishing of electronic ceramic components
- Magnetic materials: fine grinding of magnetic powders and ferrites
- Coatings & inks: dispersion and fine grinding of high-performance coatings, printing inks, and dyes
- Battery materials: grinding of cathode and anode materials for lithium-ion batteries
- Minerals & non-metallic ores: ultrafine grinding of kaolin, calcium carbonate, talc, and other minerals
- Agricultural chemicals: grinding of pesticides and fertilizer suspensions
- Titanium dioxide: dispersion and grinding of TiO₂ for high-whiteness pigment production
- Refractory materials: grinding of high-temperature refractory compositions
Support and Services:
Welcome to Fine-tech! We offer customized services for Zirconium Silicate Balls with the following product specifications: Welcome to Fine-tech! We provide customized services for zirconium silicate balls, with the following product attributes:
Brand Name: Fine-tech
Place of Origin: Changshan China
Certification: ISO9001
Minimum Order Quantity: 500KG
Price: Negotation
Packaging Details: 25kg/barrel,25kg/bag,1t/pallet
Delivery Time: 5-15work days
Payment Terms: L/C,T/T
Supply Ability: 2000t per year
Material: Zirconium Silicate
We provide comprehensive technical support and services for zirconium silicate balls. Our qualified and professional team can offer you advice and guidance on the optimal methods for using and maintaining these products.
We provide access to our technical experts, who can answer any questions you may have about our products and offer detailed recommendations on the optimal way to use them. We also offer a range of on-site and remote services, such as installation, maintenance, and repair, ensuring that your zirconia beads remain in perfect working condition.
Our technical support and services are available 24/7 every day of the week. We are committed to providing you with the highest standard of customer service and satisfaction.
Packing and Shipping:
Ceramic bead blasting packaging and shipping:
We use a combination of cardboard boxes, bubble wrap and other protective materials to ensure that the products are securely packaged and shipped. We also use specialized packaging materials to protect the product from any potential damage during the shipping process.
We use a variety of shipping methods such as FedEx, UPS, DHL, or USPS depending on the size and weight of the product. Our priority is to make sure that the product is delivered to the customer safely and on time.
FAQ:
Q1: What is Zirconium Silicate Ball?
A1: Zirconium Silicate Ball is a high-quality, high-purity and wear-resistant zirconium silicate material produced by Fine-tech. The model number is z100, certified by ISO9001, and the minimum order quantity is 500KG. The price is negotiable, and the packaging is 25kg/barrel, 25kg/bag, 1t/pallet. The delivery time is 5-15 work days, and the payment terms are L/C, T/T. The supply ability is 2000t per year.
Q2: Where is Zirconium Silicate Ball made?
A2: Zirconium Silicate Ball is made in Changshan China by Fine-tech.
Q3: What is the minimum order quantity for Zirconium Silicate Ball?
A3: The minimum order quantity for Zirconium Silicate Ball is 500KG.
Q4: How long does it take to deliver Zirconium Silicate Ball?
A4: It takes 5-15 work days to deliver Zirconium Silicate Ball.
Q5: What is the payment terms for Zirconium Silicate Ball?
A5: The payment terms for Zirconium Silicate Ball is L/C, T/T.
