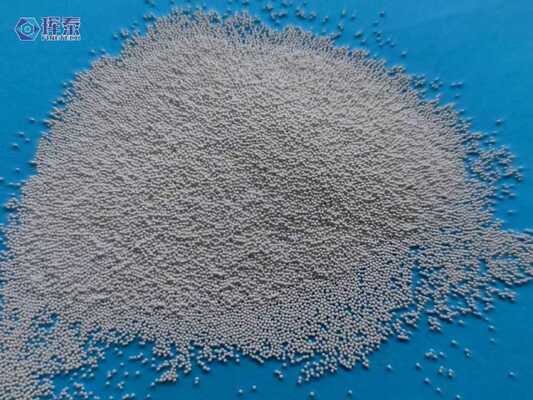

Zirconium Silicate Grinding Beads with Density 4.0g/cm3 for Grinding Pigments, Inks, Paints
| Place of Origin | Changsha China |
|---|---|
| Brand Name | Fine-Tech |
| Certification | ISO9001 |
| Model Number | B60 |
| Minimum Order Quantity | 500kg |
| Price | Negotiation |
| Packaging Details | 25kg/barral, 25kg/bag, 1t/pallet |
| Delivery Time | 5-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 2000t per year |
Product Details
| Material | Zirconium Silicate | Process | Bead Blasting |
|---|---|---|---|
| Usage | Sandblasting | Color | White |
| Size | 125-250μm |
Product Description
Product Description:
Zirconium silicate beads, also known as ceramic beads, are composed of zirconium silicate (ZrSiO₄), with a zirconium oxide content of approximately 60–65%, also referred to as "65-zirconium beads"—and a silicon dioxide content of 30–35%. These beads have moderate density, a true specific gravity of approximately 3.86 g/cm³, a Mohs hardness of 7.5, and excellent wear resistance. They are synthesized using the high-temperature crystallization method, resulting in a uniform micro structure, high hardness, smooth surface finish, good sphericity, and a high balling rate; thus, they are suitable for all types of sandblasting machines. The number of times these beads can be reused in sandblasting applications is significantly higher than that of glass beads; the product range is comprehensive, and custom production of specific particle sizes can be arranged according to customer requirements.
Features:
- Compared with traditional abrasives such as steel balls, it does not contaminate the product.
- Its energy consumption is lower than that of steel balls, and its service life is significantly longer than that of glass beads.
- Environmentally friendly and produces no dust during use.
- Excellent sphericity, superior surface finish, and excellent batch-to-batch consistency.
- Zirconia beads exhibit high toughness, high hardness, and excellent wear resistance.
- We can customize products with specific particle sizes for our clients and provide comprehensive solutions.
| Item | Zirconium silicate beads | Glass blasting beads | Steel balls |
|---|---|---|---|
| Vickers-hardness | ~700HV | ~560HV | ~700HV |
| Rockwell hardness | ~60HRC | ~46HRC | ~60HRC |
| True density | 3.86g/cm³ | 2.6g/cm³ | 7.8g/cm³ |
| Particle shape | sphere | sphere | fillet |
| Dust pollution | Very small | serious | secondary |
| Metallic pollution | not have | not have | have |
| Number of cycles | many times | 1–2 times | many times |
| Life length | Long | 1/3 ceramic sand | Long |
| Sandblasting machine energy consumption | low | low | High |
| Equipment wear | low | low | High |
| Sandblasting effect | High surface finish; work piece does not discolor. | High surface finish, but the work piece appears whitish. | Low surface finish; work piece becomes blackened. |
Technical Parameters:
| Property | Value |
| Melting Point | 2,370 °C |
| Color | White |
| Abrasion Resistance | Excellent |
| Hardness | 7.5-8 Mohs |
| Refractive Index | 1.54-1.57 |
| Density | 3.6-3.9 G/cm3 |
| Shape | Ball |
| Heat Resistance | Excellent |
| Material | Zirconium Silicate |
Applications:
B series are widely applied in various fields due to its outstanding performance: surface strengthening and surface treatment of metal components such as titanium alloy and stainless steel products, aluminum alloy parts, textile machinery components, stamping, forging, and pressing molds, extrusion molds, and medical devices; as well as cleaning of processing molds used in industries including glass processing, tire manufacturing, and plastic molding.
| Model No. | Unit | Grain Size |
| B205 | μm | 000-063 |
| B125 | μm | 000-125 |
| B120 | μm | 070-125 |
| B170 | μm | 045-090 |
| B505 | μm | 010-030 |
| F25-63 | μm | 025-063 |
| B320 | μm | 000-045 |
| B100 | μm | 180-250 |
| B80 | μm | 125-180 |
| B60 | μm | 125-250 |
| B40 | μm | 250-425 |
| B30 | μm | 425-600 |
| B20 | μm | 600-850 |
| B10 | μm | 850-1180 |
The Z series products are manufactured in accordance with the American AMS 2431/7B standard and find wide application across various fields, particularly in high-tech sectors such as the automotive industry, aerospace, and nuclear industry, as well as in the defense sector; they are used for processing precision components—including aircraft turbine blades and shafts—as well as for surface treatment of weapon systems, surface treatment and hardening of various spring wheels and hydraulic components, and for the removal of internal stresses from materials.
| Model No. | Unit | Grain Size |
|---|---|---|
| Z150 | μm | 150-210 |
| Z210 | μm | 210-300 |
| Z300 | μm | 300-425 |
| Z425 | μm | 425-600 |
| Z600 | μm | 600-850 |
| Z850 | μm | 850-1180 |
Standard industrial grinding (using 65 zirconia beads): Suitable for grinding materials with medium to low viscosity, offering excellent cost-effectiveness.
- Coatings and paints: Used for grinding pigments and fillers to enhance the gloss and stability of coatings.
- Pesticides: Used for crushing and dispersing active ingredients in the production of pesticide suspensions.
- Papermaking: Used for grinding heavy fillers such as calcium carbonate.
Customization:
Welcome to Fine-tech! We offer customized services for Zirconium Silicate Balls with the following product specifications: Welcome to Fine-tech! We provide customized services for zirconium silicate balls, with the following product attributes:
Brand Name: Fine-tech
Place of Origin: Changshan China
Certification: ISO9001
Minimum Order Quantity: 500KG
Price: Negotation
Packaging Details: 25kg/barrel,25kg/bag,1t/pallet
Delivery Time: 5-15work days
Payment Terms: L/C,T/T
Supply Ability: 2000t per year
Melting Point: 2,370 °C
Density: 3.6-3.9 G/cm3
Material: Zirconium Silicate
Heat Resistance: Excellent
Color: White
Support and Services:
We provide comprehensive technical support and services for zirconium silicate balls. Our qualified and professional team can offer you advice and guidance on the optimal methods for using and maintaining these products.
We provide access to our technical experts, who can answer any questions you may have about our products and offer detailed recommendations on the optimal way to use them. We also offer a range of on-site and remote services, such as installation, maintenance, and repair, ensuring that your zirconia beads remain in perfect working condition.
Our technical support and services are available 24/7 every day of the week. We are committed to providing you with the highest standard of customer service and satisfaction.
Packing and Shipping:
Ceramic bead blasting packaging and shipping:
We use a combination of cardboard boxes, bubble wrap and other protective materials to ensure that the products are securely packaged and shipped. We also use specialized packaging materials to protect the product from any potential damage during the shipping process.
We use a variety of shipping methods such as FedEx, UPS, DHL, or USPS depending on the size and weight of the product. Our priority is to make sure that the product is delivered to the customer safely and on time.
FAQ:
Q1: What is Zirconium Silicate Ball?
A1: Zirconium Silicate Ball is a high-quality, high-purity and wear-resistant zirconium silicate material produced by Fine-tech. The model number is z100, certified by ISO9001, and the minimum order quantity is 500KG. The price is negotiable, and the packaging is 25kg/barrel, 25kg/bag, 1t/pallet. The delivery time is 5-15 work days, and the payment terms are L/C, T/T. The supply ability is 2000t per year.
Q2: Where is Zirconium Silicate Ball made?
A2: Zirconium Silicate Ball is made in Changshan China by Fine-tech.
Q3: What is the minimum order quantity for Zirconium Silicate Ball?
A3: The minimum order quantity for Zirconium Silicate Ball is 500KG.
Q4: How long does it take to deliver Zirconium Silicate Ball?
A4: It takes 5-15 work days to deliver Zirconium Silicate Ball.
Q5: What is the payment terms for Zirconium Silicate Ball?
A5: The payment terms for Zirconium Silicate Ball is L/C, T/T.
